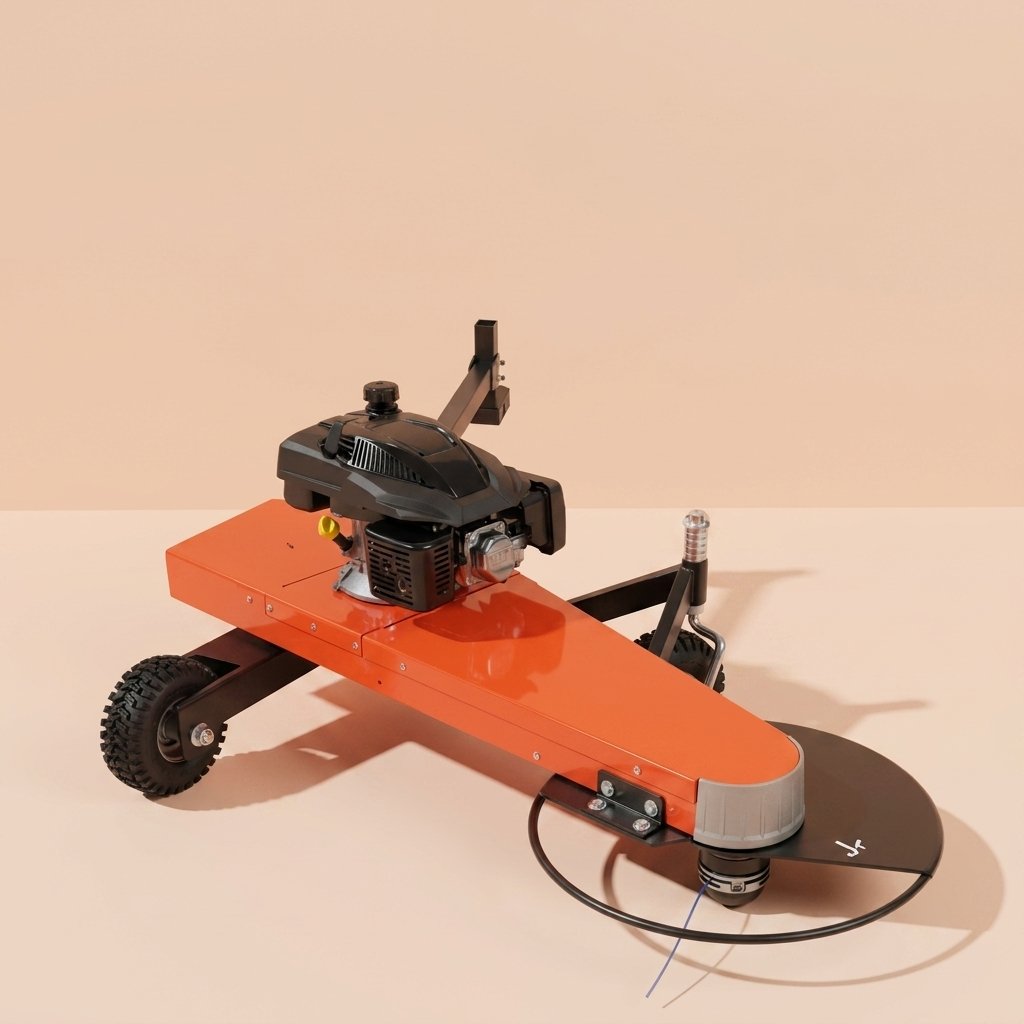

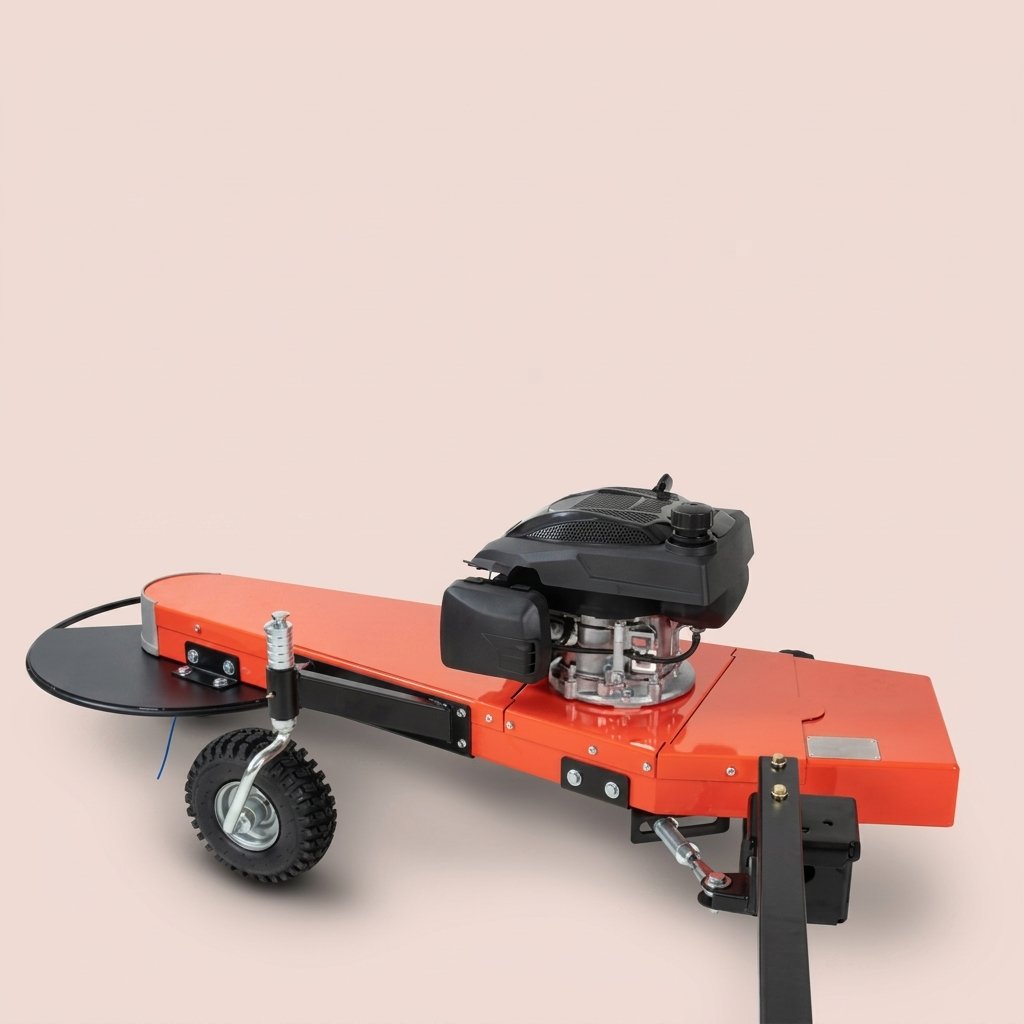

The DR® PRO XLT All-Terrain Trimmer Mower is a tow-behind trimming and mowing attachment designed for use behind an ATV, UTV, large riding lawn tractor, or utility tractor. It is suited for maintaining rough areas such as fence lines, trails, roadside ditches, walls, and other areas that can be difficult to reach with conventional lawn equipment.

The PRO XLT weighs 192 lbs. and is designed to travel across hills, rocks, slopes, and uneven terrain. Its spring-loaded trimming head can deflect around obstacles, while the adjustable hitch and offset cutting positions provide flexibility when working around property features.

Product Note: Globe Martio is an independent retailer. This product is manufactured by DR® Power Equipment and is not a Globe Martio-manufactured product. Product names, trademarks, specifications, technologies, and manufacturer warranties belong to their respective owners.

All-Terrain Trimming

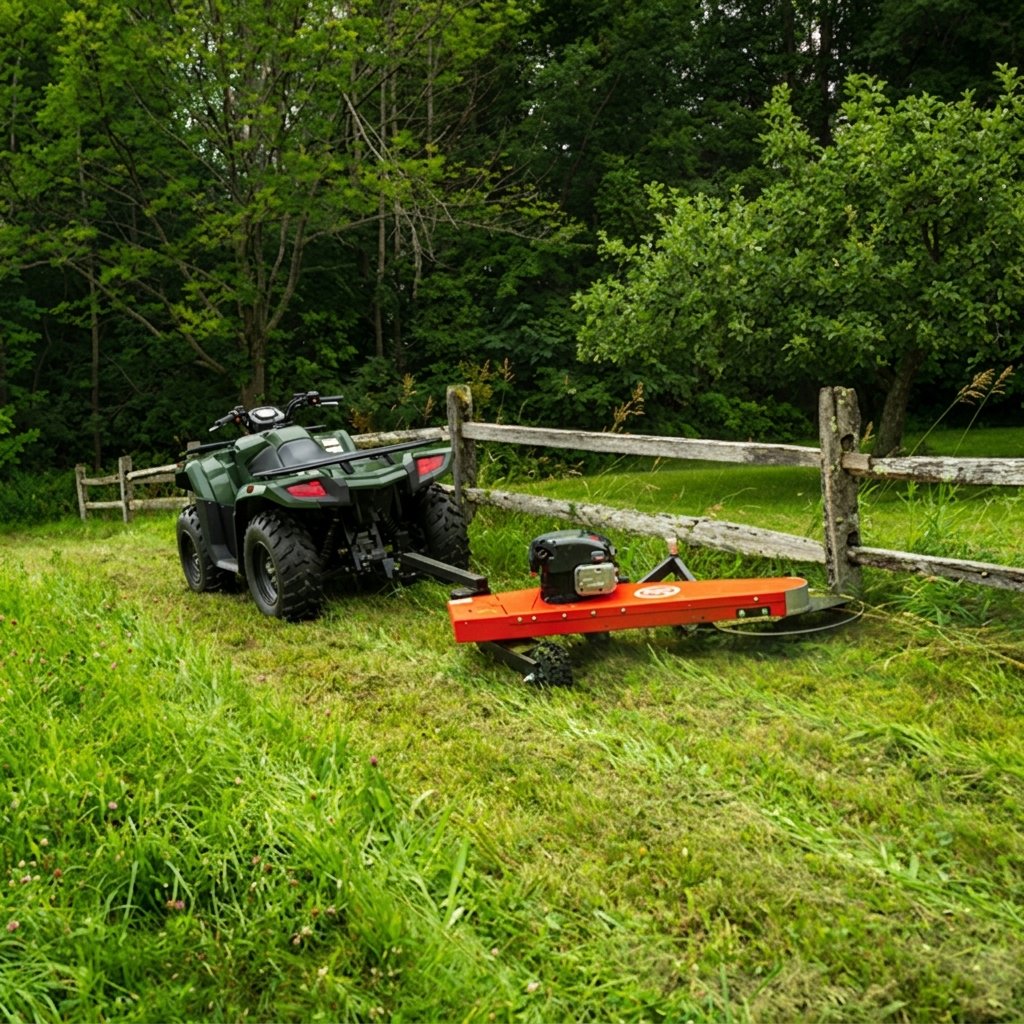

The PRO XLT is designed for trimming tall grass and weeds in rough or off-lawn areas. It can be towed behind compatible vehicles while the operator remains seated on the towing vehicle.

Depending on the towing vehicle, the trimmer can reach up to 4 feet outside the vehicle’s wheelbase, allowing the operator to work along fence lines, walls, ditches, trees, mailboxes, and other obstacles.

Quick-Lock™ Trimmer Head

The PRO XLT features the patented Quick-Lock™ Trimmer Head, which is designed to make cutting-cord replacement quick and tool-free.

The gripping system holds the replacement cord in the trimmer head. The system accepts the specified 225 and 255 mil cutting cords. For replacement cord purchases, the manufacturer specifies using either Quick-Lock 13-inch pre-cut cord or a compatible bulk cord roll.

Spring-Loaded Trimming Head

The spring-loaded trimming head is designed to deflect around obstacles such as:

• Trees
• Rocks
• Fence posts
• Walls
• Mailboxes
• Other obstacles

The tension can be adjusted according to the type of obstacle being trimmed. Lighter tension can be used around more delicate obstacles, while stronger tension can be selected for harder obstacles such as fence posts and rocks.

Offset Cutting

The PRO XLT provides three cutting positions, allowing the trimmer to be towed directly behind the towing vehicle or offset to reach outside the vehicle’s normal cutting path.

This allows the operator to position the trimming head according to the area being maintained.

Smart Shield

The Smart Shield encloses the cutting cord along the cutting edge while leaving the rear portion open for access when changing the trimming cord.

According to the manufacturer, the design allows trimming to within 1/2 inch of an obstacle.

Anti-Scalping Wheel

An adjustable-height Anti-Scalping Wheel helps control the cutting height while reducing the potential for scalping the ground. The wheel can be adjusted according to the desired trimming height and terrain.

Versatile Pin Hitch

The PRO XLT uses an adjustable-height pin hitch that can be positioned to accommodate different towing vehicles.

The manufacturer specifies compatibility with:

• ATVs
• UTVs
• Large riding lawn tractors
• Utility tractors

Designed for Rough Terrain

At 192 lbs., the PRO XLT is designed for operation across rugged terrain, including hills, rocks, slopes, and bumps. Its weight and towing configuration allow it to follow the towing vehicle while maintaining the trimming head’s position around obstacles.

Product Specifications

• Model: PRO XLT
• Product Type: Tow-Behind Trimmer Mower
• Weight: 192 lbs.
• Cutting System: Quick-Lock™ Trimmer Head
• Cutting Cord: 225 and 255 mil cords
• Replacement Cord: Quick-Lock 13″ pre-cut cord or compatible bulk cord roll
• Trimming Head: Spring-loaded
• Cutting Positions: 3
• Maximum Offset: Up to 4 feet outside the towing vehicle’s wheelbase, depending on towing vehicle
• Hitch Type: Adjustable-height pin hitch
• Anti-Scalping Wheel: Adjustable height
• Smart Shield: Yes
• Tow Vehicles: ATV, UTV, large riding lawn tractor, or utility tractor

Manufacturer Warranty Information

Warranty coverage is provided by the manufacturer and may be subject to the manufacturer’s applicable warranty terms and conditions.

• Engine: 2 years residential; 90 days commercial
• Machine: 2 years residential; 90 days commercial

Customers can purchase the DR® PRO XLT Tow-Behind Trimmer Mower through Globe Martio, with orders shipped according to Globe Martio’s applicable shipping policies.
