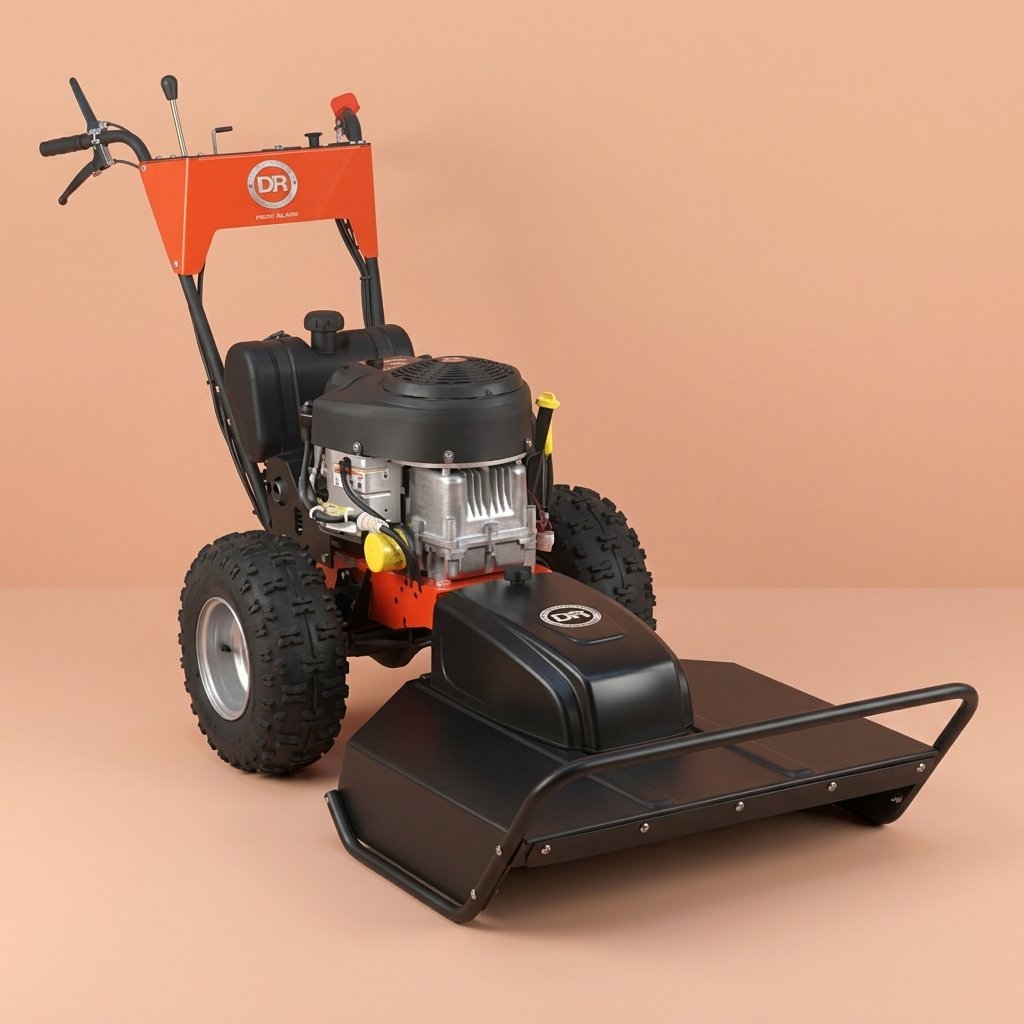

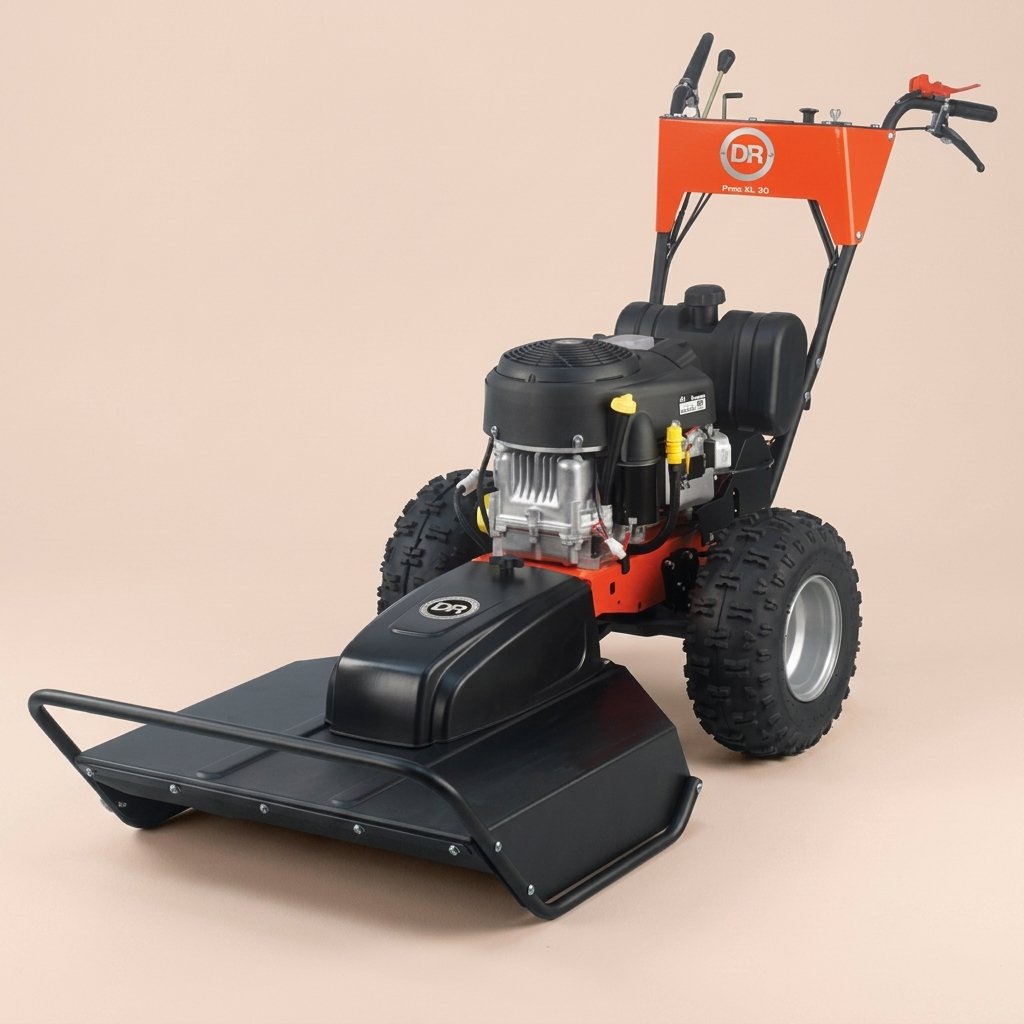

The DR® PRO XL30 is a walk-behind field and brush mower equipped with a 20 HP Briggs & Stratton® Professional Series V-Twin engine and a 30-inch pivoting mowing deck. It is designed for cutting tall, dense field grass and brush, including saplings up to 3 inches in diameter. Power Steering, a geared transmission, large lugged tires, and a pivoting deck provide control and maneuverability across uneven terrain.

Product Note: Globe Martio is an independent retailer. This product is manufactured by DR® Power Equipment and is not a Globe Martio-manufactured product. Product names, trademarks, specifications, and manufacturer warranties belong to their respective owners.

Twin-Cylinder Power and Power Steering

The PRO XL30 combines a 20 HP Briggs & Stratton® Professional Series OHV twin-cylinder engine with a 30-inch mowing deck. The engine has 650 cc of displacement, two cast-iron cylinder sleeves, a full-pressure oil pump, a spin-on oil filter, and electric starting.

Power Steering is provided through independent disc brakes on each wheel. Each brake is operated by a hand lever, allowing the operator to slow or stop one wheel and pivot the mower around it for easier turning and maneuvering.

30-Inch Pivoting Mowing Deck

The 30-inch deck provides a wide cutting path for clearing field grass and brush while maintaining maneuverability. The deck pivots from side to side to follow the contours of uneven ground, helping reduce scalping and maintain traction over rough terrain.

According to the manufacturer, the 30-inch brush deck can reduce mowing time by up to 15% compared with the PRO 26 model.

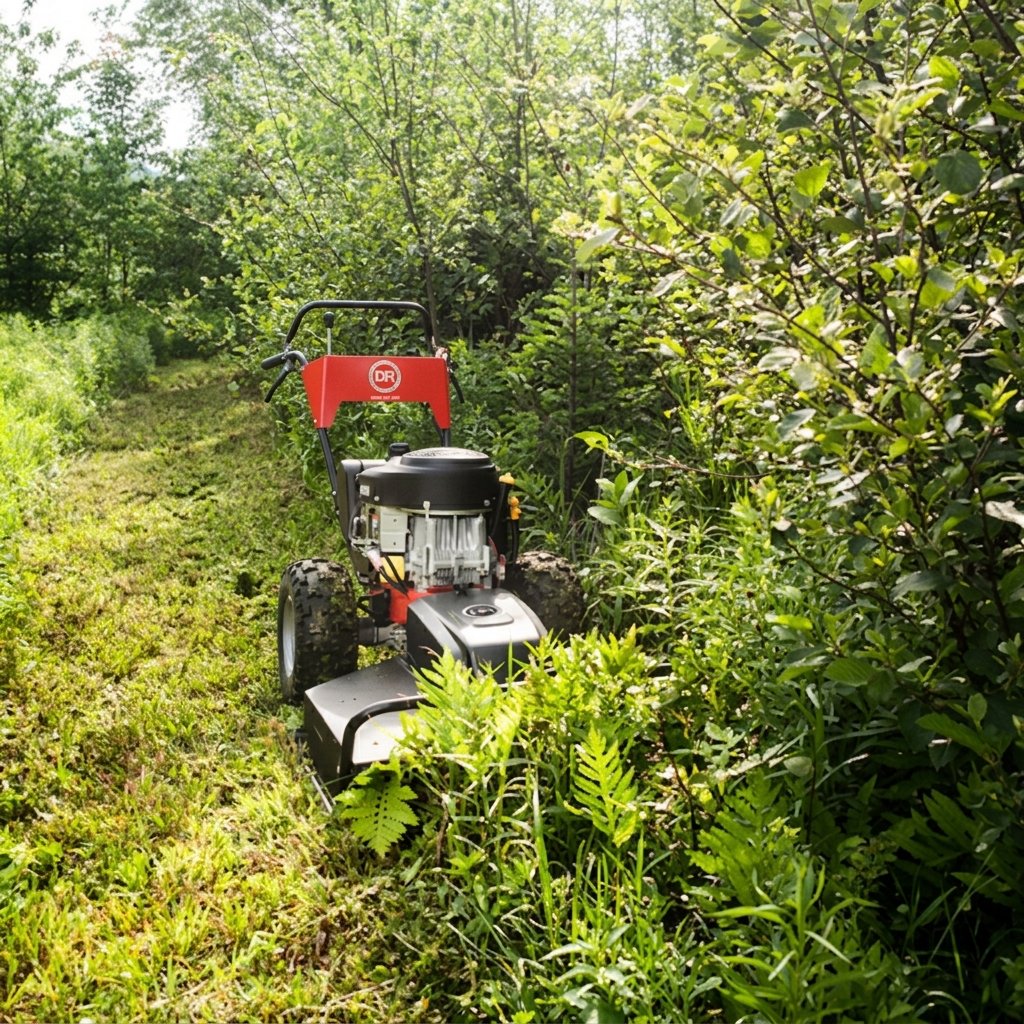

Field and Brush Cutting Capability

The PRO XL30 is designed for cutting extra-tall and dense vegetation, including field grass and saplings up to 3 inches in diameter. The three-sided enclosed deck allows cut material to be chopped and re-chopped beneath the deck, producing a finer mulch and reducing the amount of material left in the field.

Gear-Driven Transmission

The geared transmission provides three forward speeds and one reverse speed. Unlike a hydrostatic drive, the gear-driven system allows a selected ground speed to remain fixed while the operator concentrates on steering and maneuvering.

Large Lugged Tires

The PRO XL30 uses 18″ x 6.5″ x 8″ tires with lugged tread for traction across rough terrain. The tires are sealant-filled for increased resistance to punctures.

Full-Pressure Oil Pump

The Briggs & Stratton® Professional Series engine includes a full-pressure oil pump designed to provide positive lubrication, including when the mower is operating on side slopes.

Heavy-Duty Construction

The mower frame uses heavy-duty laser-cut steel, with reinforcement at key stress points. The frame and deck are finished with a durable powder coating designed to resist scratching.

Custom-Made Blade Spindle

The blade spindle is constructed from 1.375-inch-thick cast iron and uses oversized, double-sealed bearings. It is integrated into the deck housing and reinforced to support the mowing system during operation.

Commercial-Grade Electric Clutch

The PRO XL30 features a self-adjusting electric clutch designed for access and quick changes when using optional attachments. The manufacturer reports that the clutch underwent 245 hours of testing with 10% of its service life used during that testing.

Optional PTO Attachments

The mower’s quick-change coupling system allows the brush mowing deck to be replaced with compatible optional PTO attachments. The manufacturer lists the following attachment options:

• 42″ finish mower
• 30″ snow thrower
• Wood chipper
• 42″ grader blade

Optional attachments are subject to availability and applicable compatibility requirements.

Adjustable Handlebars and Ergonomic Controls

Adjustable handlebars allow the operator to select a comfortable working height. Controls are positioned on the control panel and grips for convenient access during operation and to help minimize hand fatigue.

Assembled in the USA

According to the manufacturer, the PRO XL30 is assembled in the USA using foreign and domestic parts. The original manufacturer information states that the product ships directly from the manufacturer’s Wisconsin factory.

Product Specifications

• Model: PRO XL30
• Product Type: Walk-Behind Field and Brush Mower
• Engine: Briggs & Stratton® Professional Series OHV V-Twin
• Engine Power: 20 HP
• Engine Displacement: 650 cc
• Starting System: Electric start
• Cylinder Configuration: Twin-cylinder
• Cylinder Sleeves: Cast iron
• Engine Lubrication: Full-pressure oil pump
• Oil Filter: Spin-on
• Cutting Width: 30″
• Brush Cutting Capacity: Up to 3″ saplings
• Transmission: Gear-driven
• Forward Speeds: 3
• Reverse: 1
• Steering: Power Steering with independent disc brakes
• Tires: 18″ x 6.5″ x 8″, lugged and sealant-filled
• Deck: Pivoting 30″ mowing deck
• Attachments: Accepts optional PTO attachments
• Assembly: USA, using foreign and domestic parts

Manufacturer Warranty Information

Warranty coverage is provided by the manufacturer and may be subject to the manufacturer’s applicable warranty terms and conditions.

• Engine: 2 years residential; 1 year commercial
• Machine: 2 years residential; 90 days commercial

Customers can order the DR® PRO XL30 through Globe Martio, with orders handled and shipped according to Globe Martio’s applicable policies.
