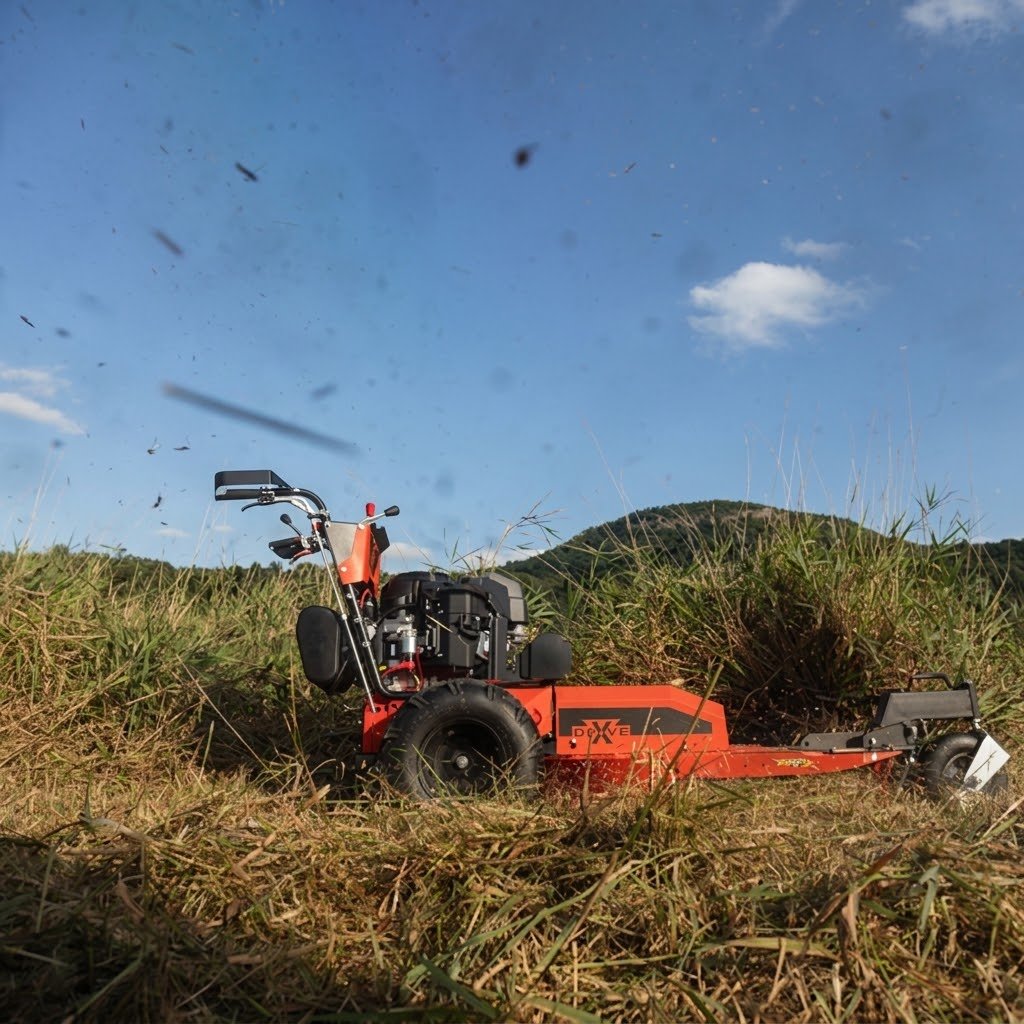

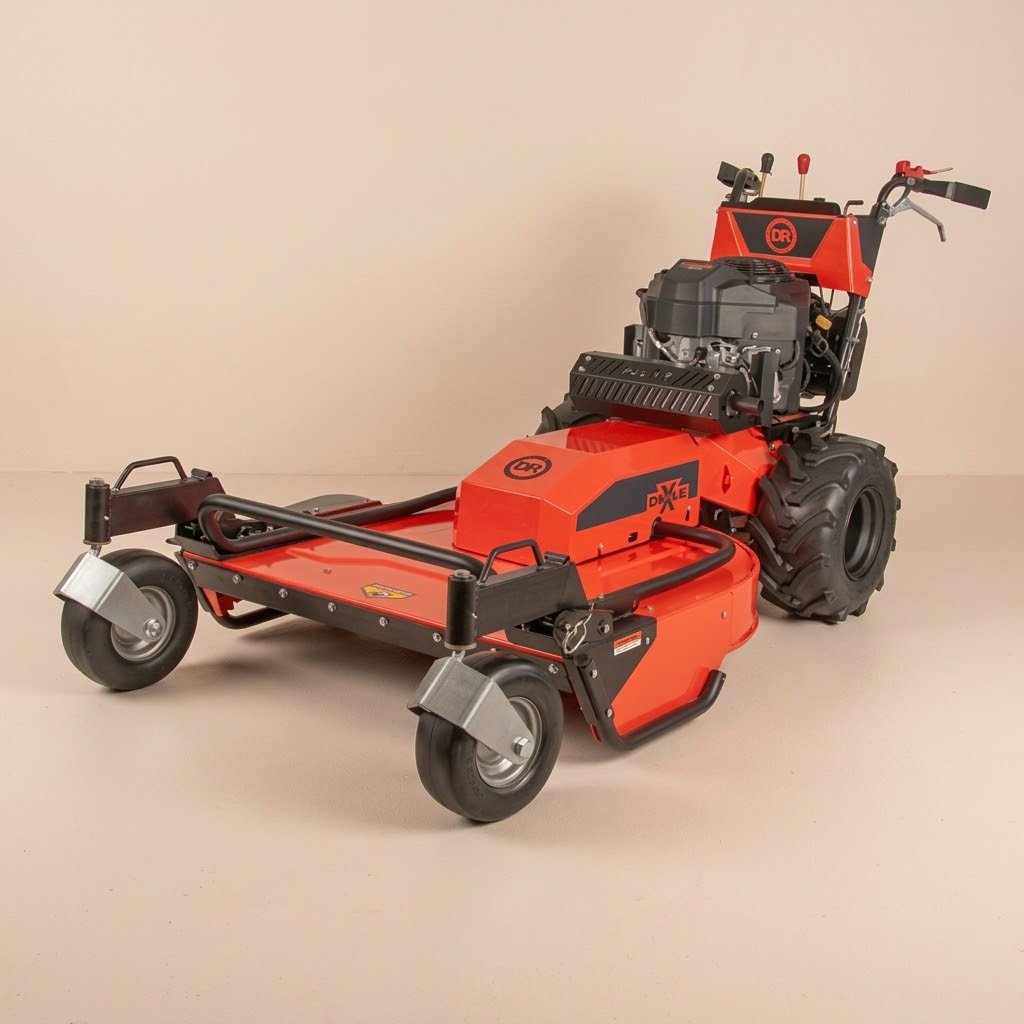

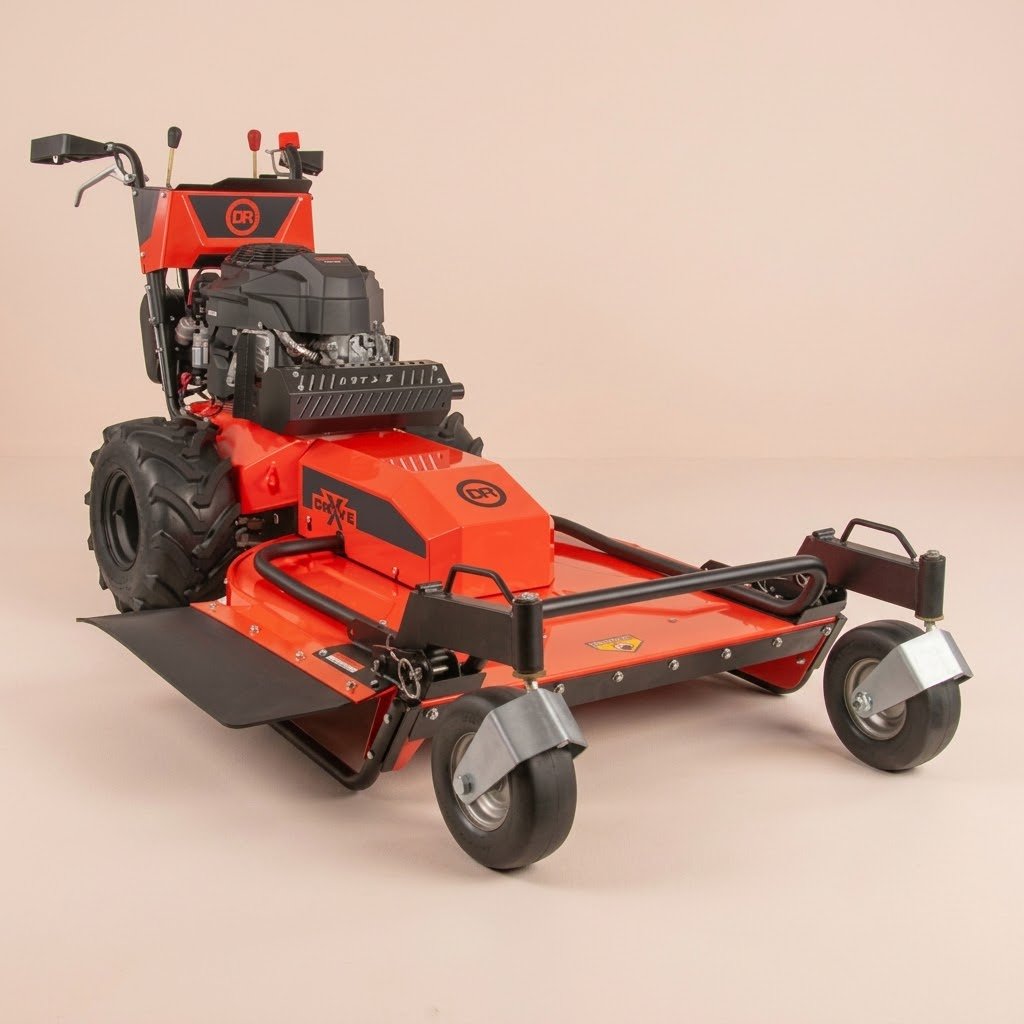

The DR® XD36 is a commercial-duty field and brush mower designed for frequent use, extended runtimes, daily transport, and demanding mowing applications. It combines a 22 HP Kawasaki® FS651V engine with a 36-inch wide brush deck, two independent hydrostatic wheel drives, and 11-inch foldable front caster wheels.

The wide mowing deck is designed to clear large areas of overgrown grass efficiently, while the independent hydrostatic drives and front casters provide maneuverability during extended mowing sessions.

Product Note: Globe Martio is an independent retailer. This product is manufactured by DR® Power Equipment and is not a Globe Martio-manufactured product. Product names, trademarks, specifications, and manufacturer warranties belong to their respective owners.

22 HP Kawasaki Commercial Engine

The XD36 is powered by a Kawasaki® FS651V engine producing 22 HP from 726 cc of displacement. The engine features electric starting and is covered by a 3-year commercial-use engine warranty according to the manufacturer.

Independent Hydrostatic Wheel Drive

Two independent hydrostatic wheel drives provide variable-speed forward and reverse operation along with zero-degree turning capability. Independent wheel-drive levers allow the operator to control power to each wheel directly for maneuvering around obstacles and through tighter areas.

The drive system is designed to provide easier handling during long mowing sessions.

36-Inch Brush Deck

The XD36 features a fully welded, 12-gauge brush deck measuring 36 inches wide. A reinforcing stability bar adds strength to the deck, while the deck pivots up to ±5 degrees to follow the contours of uneven ground.

An optional heavy-duty brush blade is available for tougher woody material. According to the manufacturer, the optional blade can be sharpened on both sides, providing up to twice the blade life compared with a single-edge blade.

Side Discharge

The XD36 uses side discharge to move mowed material away from beneath the extra-wide deck. This helps prevent excessive accumulation of cut material under the mowing deck during operation.

11-Inch Front Caster Wheels

The 11-inch front caster wheels support the weight of the 36-inch deck during extended mowing sessions. The casters are foldable and can be flipped back when working around brush and tougher vegetation.

On-Board Control Panel

The primary operating controls are located together on the on-board control panel. An integrated maintenance meter helps track service intervals.

Commercial-Duty Design

The XD36 is part of the DR® XD Series, which is designed around the requirements of commercial users, including frequent operation, long runtimes, daily transportation, and ease of maintenance.

Assembled in the USA

According to the manufacturer, the XD36 is assembled in the USA using foreign and domestic parts. The original manufacturer information states that the product ships directly from the manufacturer’s Wisconsin factory.

Product Specifications

• Model: XD36
• Product Type: Commercial Field and Brush Mower
• Engine: Kawasaki® FS651V
• Engine Power: 22 HP
• Engine Displacement: 726 cc
• Starting System: Electric start
• Drive System: Two independent hydrostatic wheel drives
• Drive: Variable-speed forward and reverse
• Turning Capability: Zero-degree turning radius
• Cutting Width: 36″
• Deck: Fully welded, 12-gauge brush deck
• Deck Reinforcement: Stability bar
• Deck Pivot: ±5°
• Discharge: Side discharge
• Front Casters: 11″ foldable front caster wheels
• Optional Blade: Heavy-duty brush blade for tougher woody material
• Controls: Independent wheel-drive levers
• Maintenance: Integrated maintenance meter
• Assembly: USA, using foreign and domestic parts

Manufacturer Warranty Information

Warranty coverage is provided by the manufacturer and may be subject to the manufacturer’s applicable warranty terms and conditions.

• Engine: 3 years residential; 3 years commercial
• Machine: 2 years residential; 2 years commercial

Customers can purchase the DR® XD36 through Globe Martio, with orders shipped according to Globe Martio’s applicable shipping policies.
