The DR® PILOT 200 Leaf and Lawn Vacuum is a high-capacity leaf and lawn vacuum designed to collect and manage leaves and other suitable yard debris. Its two-step unloading system is designed to simplify emptying, while the supporting frame can also be configured as a flatbed utility trailer when the collector assembly is removed.

The unit features a steel-tooth impeller and a 200-gallon (27 cu. ft.) collection capacity, allowing a substantial amount of lawn debris to be collected before unloading.

Globe Martio is an independent retailer. The DR® PILOT 200 Leaf and Lawn Vacuum is manufactured by its respective manufacturer and is not a Globe Martio-manufactured product. Product names, trademarks, specifications, and manufacturer warranties belong to their respective owners.

Leaf & Lawn Cleanup

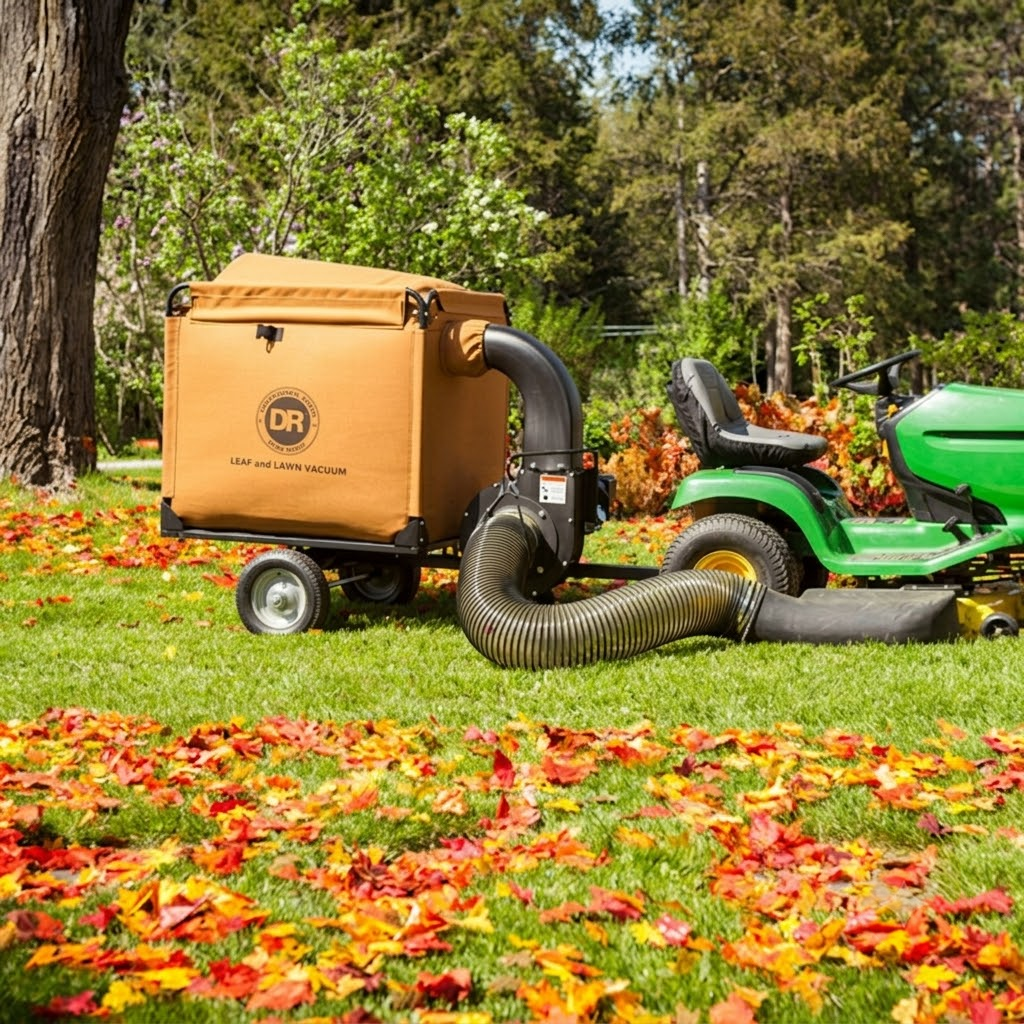

The PILOT 200 is designed to work with a compatible lawn tractor and mower deck to collect leaves and other lawn debris. Its large-capacity collector can help reduce the number of stops required during larger cleanup projects.

Quick, Simple Unloading

The collector is designed for straightforward unloading. The rear collector buckles can be released, the front locking lever disengaged, and the collector tilted backward. The steep dumping angle helps collected material slide out of the collector.

Compact Storage

The collector can be folded down without tools for more convenient storage. When folded, the collector is approximately 5 inches thick, helping reduce the space required for storage.

Converts to a Flatbed Utility Trailer

When the collector assembly is removed, the supporting frame can be configured as a flatbed utility trailer. This provides additional versatility for transporting equipment, supplies, and other suitable loads around a property.

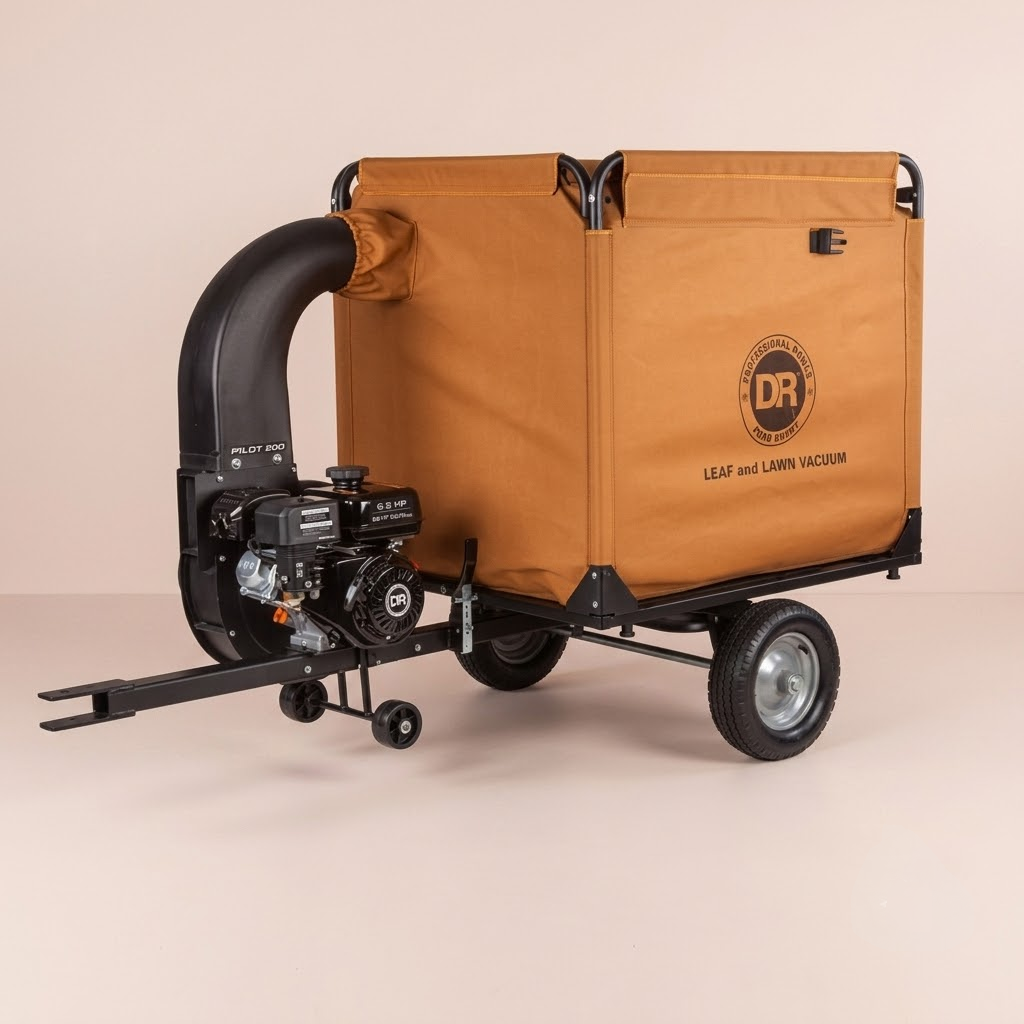

PILOT 200 Product Specifications

• Collection Capacity: 200 gallons / 27 cu. ft.
• Hitch: Single-point hitch
• Optional Accessory: Jack stand
• Engine: DR OHV, 6.6 HP / 9.59 ft-lbs gross torque*
• Starting System: Manual start
• Weight: 230 lbs

Recommended Lawn Tractor Requirements

• Recommended Tractor Power: 17 HP or greater
• Verify compatibility with the lawn tractor and mower deck before purchase.

Manufacturer Warranty Information

Warranty information for the PILOT 200 is provided by the manufacturer and may be subject to the manufacturer’s applicable warranty terms and conditions.

Machine

• Residential Use: 2-year warranty
• Commercial Use: 90-day warranty

Engine

• Residential Use: 2-year warranty
• Commercial Use: 1-year warranty

Optional Accessories

Vacuum Hose

The optional 20-foot vacuum hose provides additional reach for areas that may be difficult to access with a lawn tractor, including around flower beds, hedges, and other landscaping features.

Mulch Discharger

The optional Mulch Discharger allows collected material to be discharged in a selected area, such as a composting area or other suitable location.

Efficient Leaf & Lawn Cleanup

The PILOT 200 works with a compatible mower deck to collect lawn debris. The mower blade lifts leaves and other material into the collection system, where the steel impeller helps break down the collected material before it enters the collector.

The debris-reduction process helps make better use of the available collection capacity and can reduce the frequency of unloading during cleanup.

Versatile Property Maintenance

The PILOT 200 can be used for various property maintenance tasks throughout the year.

• Spring: Help clear leaves and yard debris following seasonal cleanup and storms.
• Summer: Collect lawn debris and other suitable organic material during routine property maintenance.
• Year-Round: Remove the collector assembly and use the supporting frame as a utility trailer for suitable hauling tasks.

Features

Heavy-Duty Steel Impeller

The PILOT 200 uses a steel impeller designed to provide durable performance during leaf and lawn debris collection.

8-Inch Vacuum Hose

The system uses an 8-inch vacuum hose designed to provide the airflow required for collecting and moving lawn debris into the collector.

Modular Construction

The collector assembly can be removed and folded for more convenient storage. The modular design also allows the supporting frame to be configured as a flatbed utility trailer when the appropriate components are removed.

Shark-Teeth Steel Impeller

The mower deck and Shark-Teeth steel impeller work together to break down collected leaves and yard debris into smaller pieces before they enter the collector.

Large 200-Gallon Capacity

The PILOT 200 provides 27 cubic feet / 200 gallons of collection capacity, allowing a substantial amount of leaves and lawn debris to be collected before unloading.

Large 14-Inch Wheels

The PILOT 200 is equipped with 14-inch wheels designed to provide smooth movement across the property. An optional Wheel Upgrade Kit is available for converting the machine to a dual-wheel configuration.

Flatbed Utility Trailer

After removing the collector and power unit, the underlying frame can be configured as a flatbed utility trailer with a 400-pound load capacity. The trailer can be attached to a compatible riding mower or ATV using the pin hitch. Transported materials should be secured appropriately before moving the trailer.

Optional Trailer Jack Stand

An optional trailer jack stand is available to make the machine easier to position when it is not connected to a tractor. The jack stand accommodates pin-hitch heights from 8 to 15 inches, features a 4-inch wheel, and can be folded or lifted out of the way during operation.

Easy-Access Collector Closures

Large buckles secure the collector and are designed for convenient operation. The collector doors can also be secured in the open position when needed for unloading or maintenance.

*Engine power and torque ratings are manufacturer specifications and may vary depending on testing conditions and configuration.
