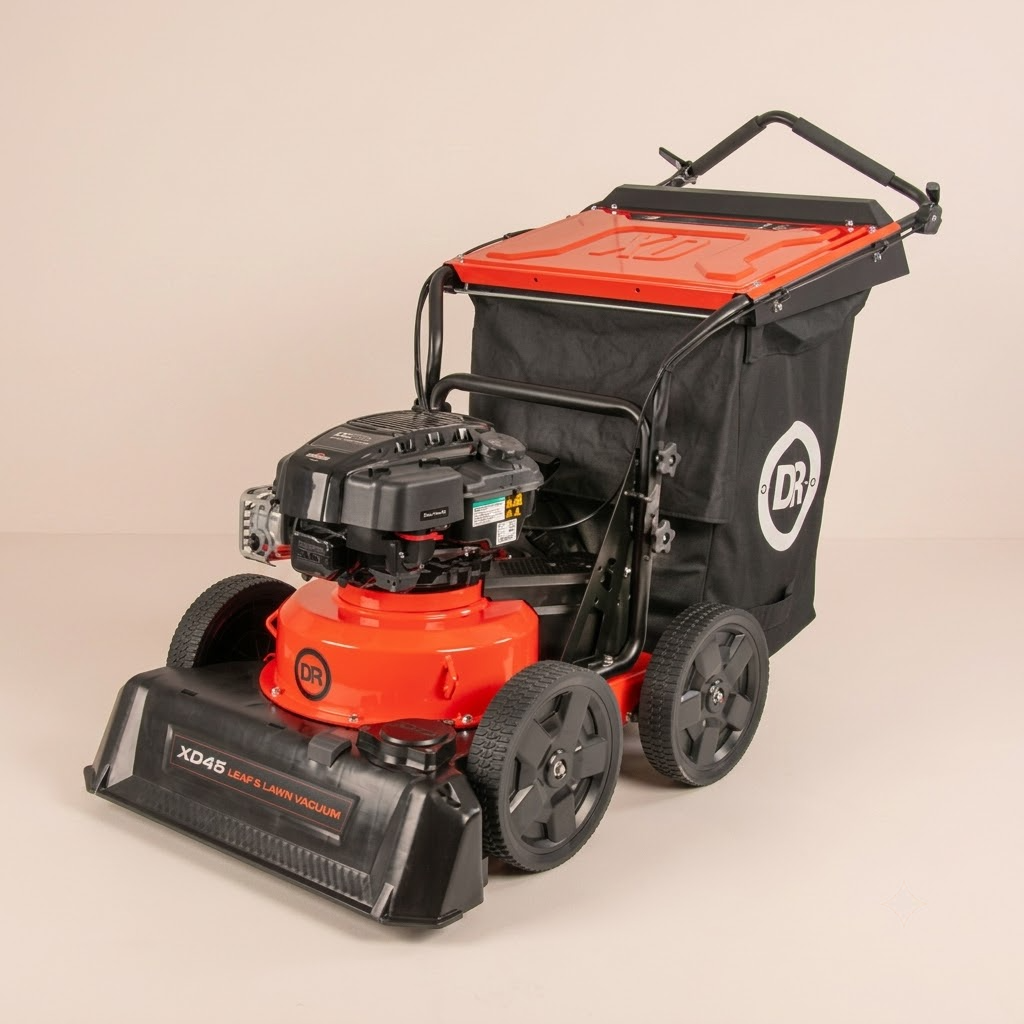

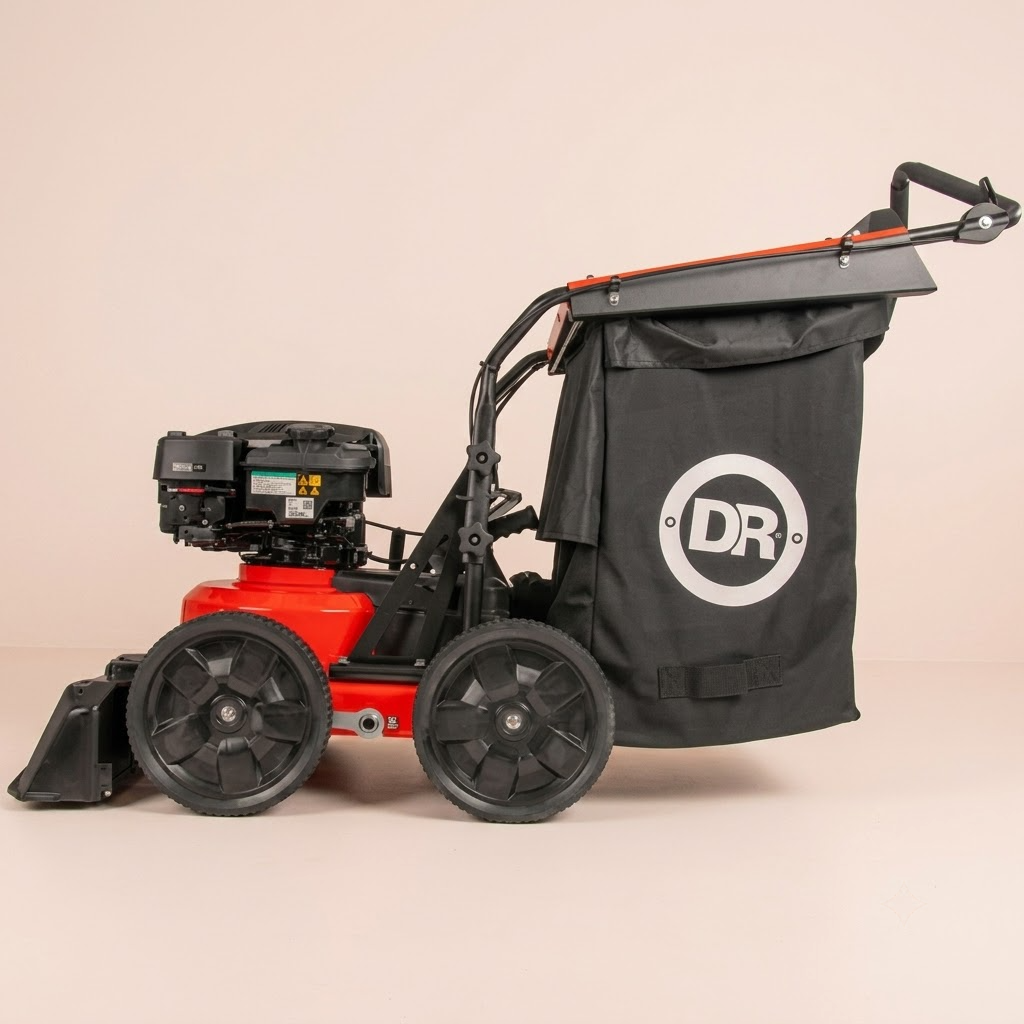

The DR® XD45 Walk-Behind Leaf and Lawn Vacuum is a commercial-grade walk-behind leaf and lawn vacuum designed for demanding property cleanup. Its 30-inch intake, 45-gallon collection bag, heavy-duty steel impeller, and durable steel construction are designed for collecting leaves, grass clippings, litter, and other suitable lawn debris.

The open-top collection bag is designed for quick removal and unloading. An optional On-Board Hose Kit provides additional reach for areas that are difficult to access with the machine.

Globe Martio is an independent retailer. The DR® PILOT 200 Leaf and Lawn Vacuum is manufactured by its respective manufacturer and is not a Globe Martio-manufactured product. Product names, trademarks, specifications, and manufacturer warranties belong to their respective owners.

Product Specifications

• Engine: 190cc Briggs & Stratton OHV, manual start
• Torque: 8.5 ft-lbs
• Collection Capacity: 6 cu. ft. / 45 gallons
• Impeller: Heavy-duty all-steel, serrated
• Debris Reduction: Approximately 3:1
• Collection Bag: Open-top design
• Frame: 12-gauge steel
• Wheels: 12-inch Never Flat wheels
• Weight: 170 lbs

Manufacturer Warranty Information

Warranty information for the XD45 is provided by the manufacturer and may be subject to the manufacturer’s applicable warranty terms and conditions.

Engine

• Residential Use: 2-year warranty
• Commercial Use: 1-year warranty

Machine

• Residential Use: 2-year warranty
• Commercial Use: 1-year warranty

Efficient Cleanup Performance

The XD45 is designed for leaf, lawn, and litter cleanup applications. Its 30-inch intake provides a wide collection path, while the 45-gallon collection bag provides capacity for collected debris.

The 190cc Briggs & Stratton OHV engine provides 8.5 ft-lbs of torque to the heavy-duty steel impeller. The serrated impeller helps break down collected material before it enters the collection bag, allowing the available collection capacity to be used efficiently.

The open-top collection bag can be released and removed for unloading. Integrated tie-down points are also provided for securing the machine during trailer transport.

Optional On-Board Hose Kit

The optional On-Board Hose Kit provides additional reach for areas that are difficult to access with the vacuum.

The system redirects suction through a 4-inch clear vacuum hose, while the integrated handle provides up to 8 feet of additional reach. The hose can be used for cleaning around flower beds, curbs, landscaping edges, and other hard-to-reach areas.

Features

Commercial-Grade Briggs & Stratton Engine

The 190cc Briggs & Stratton OHV engine produces 8.5 ft-lbs of torque and provides power for the vacuum and impeller system.

The engine is covered by a 2-year residential warranty and a 1-year commercial warranty, subject to the manufacturer’s applicable warranty terms.

Heavy-Duty Steel Impeller

The impeller is constructed from 1/4-inch steel and features serrated fins designed to reduce collected debris by approximately 3:1.

This debris reduction helps make more efficient use of the available collection capacity.

Quick-Release Open-Top Collection Bag

The collection bag holds up to 45 gallons (6 cu. ft.) of material. Its open-top design allows the bag to be released and removed for unloading.

Direct-Flow Bag Connection

The collection bag is positioned directly in line with the impeller, providing a direct path for material moving from the intake into the collection system.

Variable-Speed Drive

The adjustable drive system allows the operator to select a travel speed appropriate for the terrain and cleanup conditions, providing greater control while operating the machine.

Adjustable Intake Height

The intake height can be adjusted to suit different surfaces and debris conditions. The adjustment mechanism allows the operator to raise or lower the intake to the desired operating position.

Integrated Tie-Down Points

Built-in tie-down anchors on the front of the machine provide attachment points for securing the XD45 during trailer transport.

12-Inch Never Flat Wheels

The 12-inch Never Flat wheels feature solid rubber turf tread designed to provide traction without requiring inflation or routine pneumatic tire maintenance.

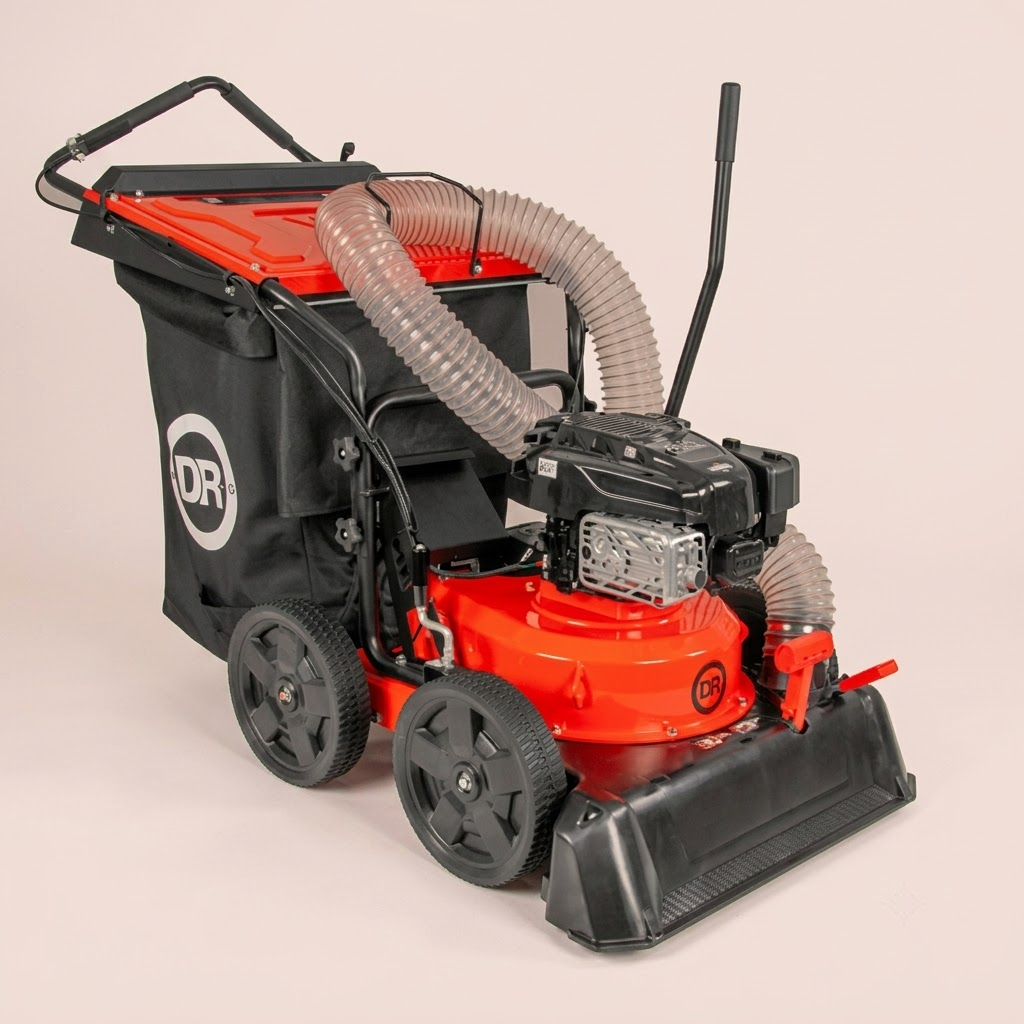

Optional On-Board Hose Kit

The optional hose kit connects to the intake and allows the XD45 to switch between standard vacuum operation and handheld cleanup.

Moving the control lever redirects suction through the 4-inch hose, providing up to 8 feet of additional reach for cleaning areas that are difficult to access with the machine.
