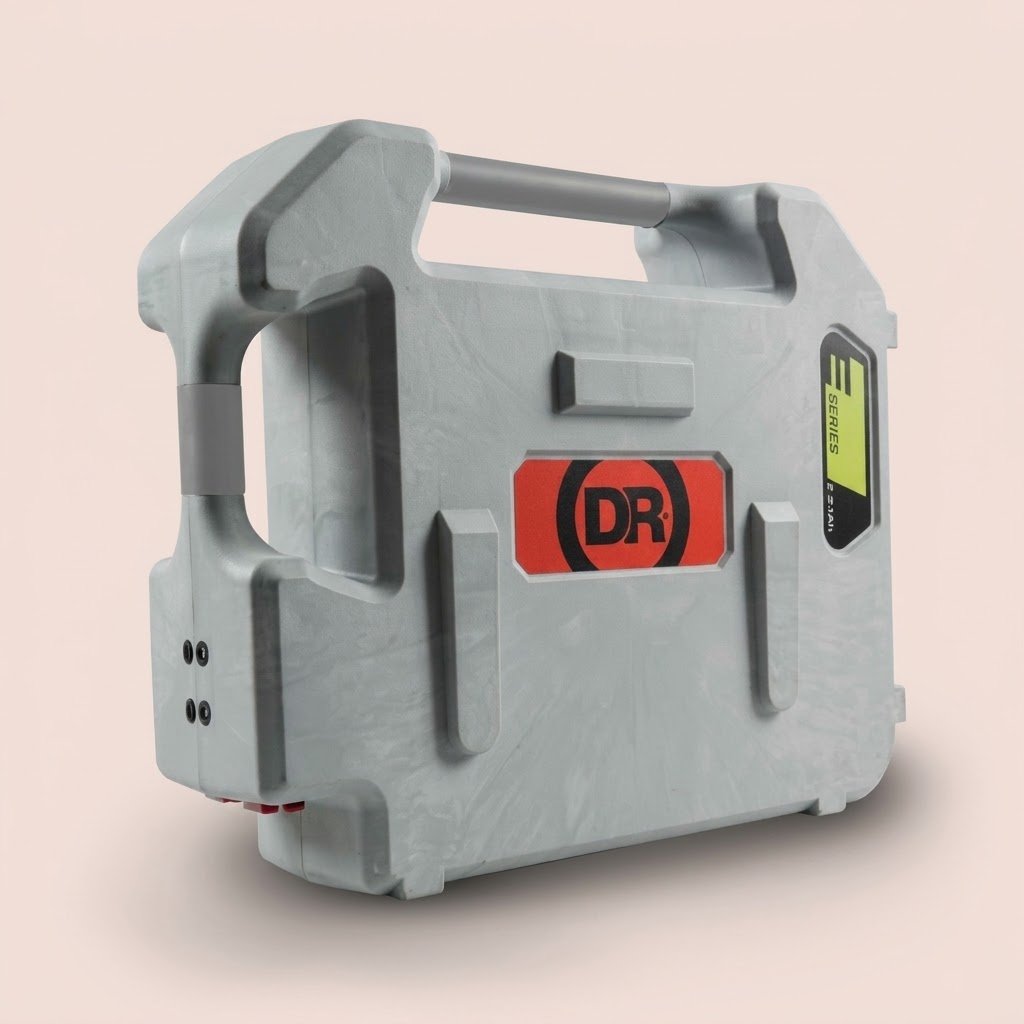

The DR® E-Series Battery Pack is a 2.5 kWh, 48V lithium-ion battery designed for use with compatible DR® battery-electric equipment, including the DR ZT5E Lawn Mower in both 48-inch and 60-inch configurations and the DR FB26E Field and Brush Mower.

The battery includes built-in handles for easier transport and an external charge and error indicator. It can be purchased as an additional battery for extended operating sessions or as a replacement for compatible equipment.

Please Note: The charger is sold separately. This listing is for a single DR® E-Series Battery Pack.

Product Note: Globe Martio is an independent retailer. This product is manufactured by DR® Power Equipment and is not a Globe Martio-manufactured product. Product names, trademarks, specifications, and manufacturer warranties belong to their respective owners.

2.5 kWh Battery Pack for Multiple DR Products

The DR® E-Series Battery Pack provides 2.5 kWh of energy at 48V and is designed to work with specific DR battery-electric products.

Compatible applications listed by the manufacturer include:

• DR ZT5E 48″ Lawn Mower
• DR ZT5E 60″ Lawn Mower
• DR FB26E Field and Brush Mower

The number of batteries that can be used depends on the specific machine.

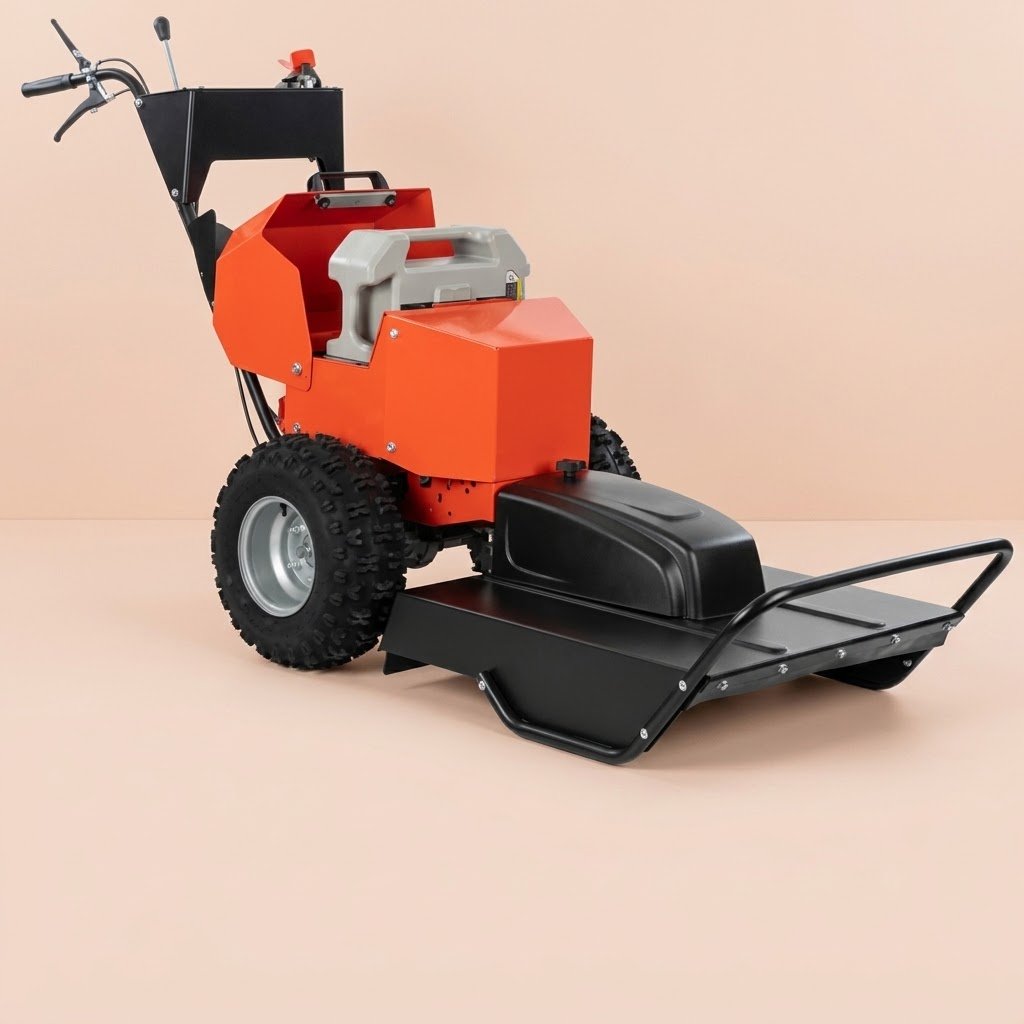

For the DR FB26E Field and Brush Mower

The DR FB26E Field and Brush Mower operates using a single E-Series Battery Pack. The mower also includes a battery caddy for transporting an additional fully charged battery to the work area.

A single battery can provide up to 90 minutes of runtime in the FB26E, depending on mowing conditions. Actual runtime can vary based on the vegetation being cut and operating conditions. For example, thick field grass with high water content can consume battery power more quickly, while lighter, drier brush may provide longer operating time.

An additional E-Series Battery can be used to support longer work sessions, with the additional battery transported using the mower’s battery caddy.

For DR ZT5E Lawn Mowers

The DR ZT5E Lawn Mowers can use one, two, or three E-Series Battery Packs. Multiple batteries can operate as an interconnected battery array.

Each battery provides 2.5 kWh, allowing three batteries to provide a combined capacity of up to 7.5 kWh. The manufacturer states that the mowing and self-propulsion power remains the same regardless of the number of batteries installed; additional batteries primarily increase available runtime.

The ZT5E can recharge its battery system directly in the mower, eliminating the need for an external charger for recharging the batteries in the mower.

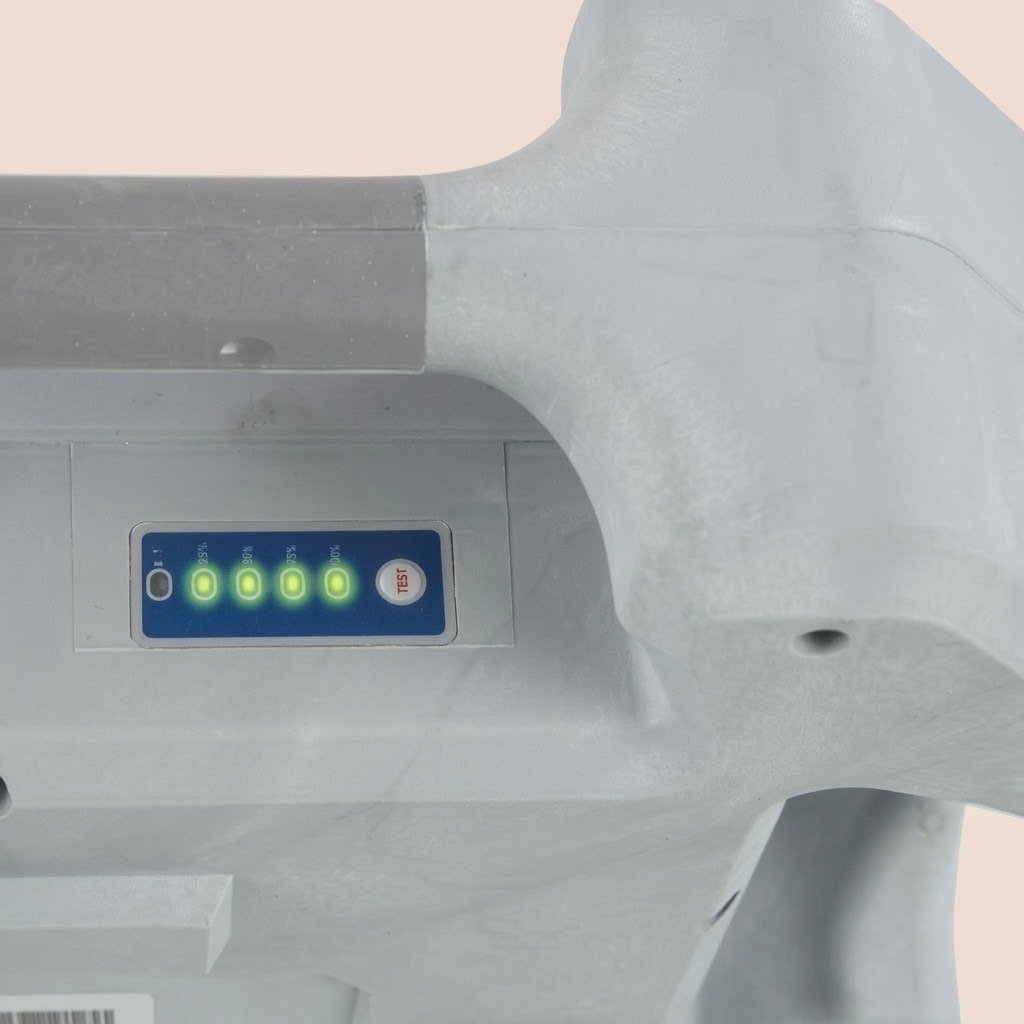

External Charge and Error Indicator

The battery features an external indicator that provides charging and error information, allowing battery status to be checked without removing the pack from the equipment.

Built-In Carry Handles

Integrated handles make the battery easier to transport and position when installing or removing it from compatible equipment.

Battery and Charger Information

This product includes one E-Series Battery Pack.

• Battery: Included
• Charger: Sold separately
• Combination battery and charger kit: Available separately
• Battery Capacity: 2.5 kWh
• Voltage: 48V
• Battery Quantity: 1 pack

Product Specifications

• Product: DR® E-Series Battery Pack
• Battery Type: Lithium-ion
• Capacity: 2.5 kWh
• Voltage: 48V
• Quantity: Single battery
• Compatible Equipment: DR ZT5E 48″ Lawn Mower, DR ZT5E 60″ Lawn Mower, DR FB26E Field and Brush Mower
• FB26E Runtime: Up to 90 minutes per charge, depending on conditions
• ZT5E Configuration: 1, 2, or 3 batteries
• Maximum ZT5E Battery Array: Up to 7.5 kWh with three batteries
• Charge/Error Indicator: External
• Carry Handles: Built in
• Charger: Sold separately

Manufacturer Warranty Information

Warranty coverage is provided by the manufacturer and may be subject to the manufacturer’s applicable warranty terms and conditions.

• Residential Battery Warranty: 5 years or 1,000 hours, whichever occurs first

Customers can purchase the DR® E-Series Battery Pack through Globe Martio, with orders shipped according to Globe Martio’s applicable shipping policies.
